An In-Depth Technical Guide to Workplace Video Wall Solutions

Video walls are transforming modern workplaces, enhancing environments from executive lobbies to control rooms and collaborative spaces. To leverage their full potential, it is essential to understand not just the display technologies available, but also the technical nuances that impact performance and user experience—including pixel pitch, viewing angles, controller hardware, mounting systems, and advanced display options like transparent LED.

Core Components of Video Walls

A video wall is a unified display surface built from multiple screens, typically tiled together to create a virtually seamless image. Its main components include:

• Display Panels: Either LED or LCD, each module adds to the total resolution, color fidelity, and brightness of the wall.
• Mounting Systems: Precision engineering ensures the panels are aligned perfectly and can be serviced easily. Options include fixed frames, pop-out mounts for front access, and modular systems for scalability.

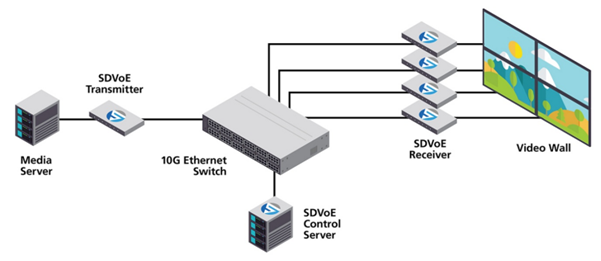

• Controller Hardware: Video wall processors and controllers distribute video signals, scale content, and manage synchronization across the entire wall. Advanced controllers support multi-window layouts, real-time data, and failover capabilities.
• Content Management System (CMS): Software for content scheduling, live updates, zone management, and monitoring, ensuring efficient content delivery and operational control.
• Cabling and Connectivity: High-bandwidth, low-latency infrastructure is critical for delivering data and power to every panel and controller, reducing latency and preventing visual artifacts.

LED vs LCD Video Walls: A Technical Comparison

The choice between LED and LCD is driven by use case, budget, and environment.

• LED Video Walls:
• Composed of surface-mounted device (SMD) RGB LEDs, allowing for modular, bezel-free construction.
• Unmatched brightness (up to 8,000 nits or higher), making them ideal for high-ambient-light or outdoor scenarios.
• Superior uniformity and color consistency, with deep blacks and vibrant hues.
• Flexible form factors include curved, cornered, and transparent displays, supporting creative design integration.
• Extreme durability—IP65 or higher ratings are common for outdoor modules, supporting resistance to dust, moisture, and impact.
• Wide pixel pitch range (0.7mm for fine-pitch indoor, up to 15mm for very large outdoor displays).

LCD Video Walls:

Use commercial-grade LCD panels with ultra-narrow bezels (0.44mm and above), reducing interruption between tiles.

High native resolution, exceptional for up-close viewing and content requiring fine detail.

Peak brightness of 500–700 nits, best suited to controlled or indoor lighting.

More cost-effective for small-to-medium installations; alignment and calibration are crucial to minimize bezel visibility and color variance.

Ideal for boardrooms, control centers, and retail spaces where clarity and color accuracy are vital.

Pixel Pitch: The Critical Metric

Pixel pitch is the center-to-center distance between adjacent pixels and is a key determinant of image sharpness and minimum optimal viewing distance. It is measured in millimeters (mm).

• Small pixel pitch (0.7mm–2.5mm): Ideal for applications where viewers are close to the video wall, such as control rooms, meeting spaces, and high-end retail. It delivers ultra-fine detail and smooth images, but increases cost and processing demand.
• Medium pixel pitch (2.5mm–6mm): Balanced for lobbies, classrooms, or mid-sized event spaces where viewers are 3–10 meters away.
• Large pixel pitch (6mm–15mm): Used in stadiums, outdoor signage, or large public installations, where viewing distance is significant and content is bold and high-contrast.

The rule of thumb: minimum optimal viewing distance (in meters) ≈ pixel pitch (in mm) × 1.5–2. For example, a 1.5mm pitch wall looks seamless from 2–3 meters away.

Viewing Angles: Image Visibility Across Spaces

Viewing angle describes how far off-center a person can stand and still see a high-quality image. It is measured in degrees from the perpendicular line to the screen.

• LED Video Walls: Modern SMD and COB (chip-on-board) LEDs provide ultra-wide viewing angles, often up to 160° horizontal and vertical. This ensures consistent visibility and color even for viewers at sharp angles—critical in large or open spaces.
• LCD Video Walls: IPS (in-plane switching) LCD panels offer wide viewing angles (typically 178°), but may suffer from slight color or brightness shifts at the farthest angles, particularly in older panel types.

Uniform brightness and color consistency at wide angles is vital to ensure the wall’s impact isn’t lost when viewed from the side or across a room.

Transparent LED Video Walls

Transparent LED walls utilize see-through modules, often glass-based, to deliver vibrant content without blocking sightlines or natural light. These displays are favored in lobbies, glass partitions, and retail storefronts where both visual impact and architectural openness are desired. Transparency ratings from 60–90% and pixel pitches of 3–10mm are typical, with brightness levels sufficient for sunlight-readable performance.

Installation Planning and Advanced Mounting Systems

Proper planning covers:

• Structural Survey: Confirm wall load capacity, weight distribution, and environmental factors like sunlight and HVAC proximity.
• Advanced Mounting: Pop-out and front-service mounts facilitate maintenance. Modular frames allow rapid expansion or replacement of panels.
• Ventilation and Redundancy: Active cooling, failover power supplies, and data redundancy are essential for 24/7 and mission-critical displays.
• Server/Media Rack: A room or cabinet should be provided for the server or media rack to be placed. The video wall CMS servers and controllers will be housed here.

World’s Largest Video Walls

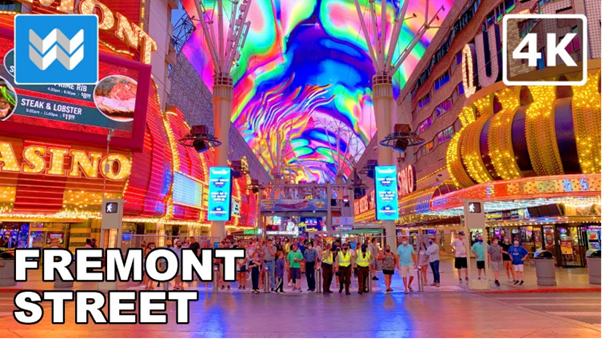

• Outdoor: Fremont Street Experience in Las Vegas uses direct-view LED, stretching over 400 meters and withstanding intense sunlight and weather extremes.

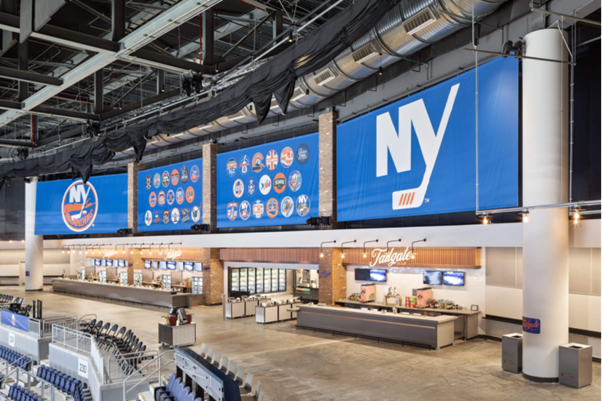

• Indoor: Samsung’s LED wall at UBS Arena showcases 8K resolution across a massive fine-pitch LED canvas—demonstrating what’s technically possible indoors.

Choosing the Right Technology

• Outdoor: LED video walls are unrivaled for brightness, resilience, and seamless scalability.
• Indoor: LCDs are cost-effective for detailed, close-up tasks; fine-pitch LEDs excel in large, high-impact venues.
• Lobbies & Retail: Transparent LED and ultra-slim bezel LCDs deliver visual drama without sacrificing light or openness.

Conclusion

Video walls are a multifaceted solution for workplace engagement and branding. By understanding technical considerations—especially pixel pitch, viewing angles, controller hardware, and mounting systems—organizations can select and deploy robust, visually stunning video wall solutions tailored to their unique needs. Careful installation and CMS integration ensure long-term performance, reliability, and striking visual impact. Contact ATODE for further information or advice on your next video wall installation.
