A Technical Guide to Building Effective Meeting Room Video Conferencing Systems

In modern business environments, the meeting room has evolved from a simple table-and-chairs setup into a sophisticated hub for collaboration. As remote work and global teams become the norm, designing a video conferencing room that ensures clear communication, robust connectivity, and seamless user experience is no longer optional. It is essential. This comprehensive guide addresses two central questions: Should you use AV over IP or a matrix switcher for signal distribution, and what are the best practices for integrating vital components like microphones, speakers, cameras, and network infrastructure? Let’s demystify the process and provide solutions to common technical and design challenges.

Understanding AV over IP and Matrix Switching

Selecting the right signal distribution method is foundational to a successful meeting room. The two leading technologies are AV over IP and matrix switching. Both serve the purpose of routing audio and video signals between sources and destinations, but they do so in fundamentally different ways.

AV over IP: The Network-Based Approach

AV over IP (Audio-Visual over Internet Protocol) transmits audio, video, and control signals over standard Ethernet networks. Instead of dedicated point-to-point cabling, AV signals are encoded, packetized, and sent over the existing network infrastructure.

• Latency: AV over IP introduces minimal latency, typically around 1-2 frames, which is almost imperceptible for most conferencing needs. However, in ultra-low-latency scenarios like live event production, this could be a concern.
• Cabling: Utilizes standard Cat5e, Cat6, or fiber cabling. This allows for easy upgrades and future-proofing as network demands grow.
• Scalability: Highly scalable. Adding endpoints is as simple as connecting more devices to the network, making it ideal for growing organizations or facilities with fluctuating requirements.
• Cost: Initial setup may be less expensive due to using existing network infrastructure, but high-quality encoders and network switches can offset the savings.
• Applications: Best suited for new installations, large campuses, or organizations seeking flexibility and room for expansion.

Matrix Switching: The Traditional Powerhouse

Matrix switchers are dedicated hardware devices that provide fixed audio and video routing using point-to-point connections. These systems are known for their reliability and low latency.

• Latency: Virtually zero latency, making them ideal for real-time content and mission-critical applications.
• Cabling: Requires dedicated cables (HDMI, SDI, or proprietary) between devices and the switcher. This can increase installation complexity in larger spaces.
• Scalability: Limited by the number of physical input and output ports. Expanding the system often means replacing or adding more hardware.
• Cost: Higher upfront hardware costs, especially as the number of sources and destinations increases.
• Applications: Well-suited for small to medium rooms where reliability and real-time performance are paramount.

Which Solution Fits Which Industry?

Choosing between AV over IP and matrix switching starts with understanding your organization’s present and future needs.

• Corporate Campuses: AV over IP is the clear winner for organizations with large, distributed meeting rooms and a need for flexibility.
• Education: Universities and schools with multiple classrooms can benefit from AV over IP for ease of expansion.
• Finance and Control Rooms: Matrix switchers are often preferred in environments where latency and security are critical.
• Small Businesses: For single-room or small-scale setups, a matrix switcher may be more cost-effective and easier to manage.

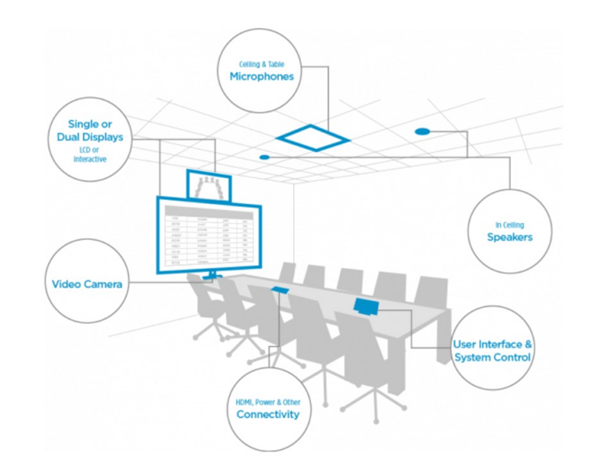

Designing the Video Conferencing Room: Key Components and Placement

Once you have selected the backbone for signal distribution, attention shifts to the elements that define the user experience: audio, video, acoustics, and network. Every piece plays a role in achieving professional, frustration-free meetings.

Microphone Placement and Selection

Clear audio is the cornerstone of any conferencing system. Poor mic placement leads to echoes, muffled voices, and participant fatigue.

• Table Mics: Ideal for small rooms. Place evenly along the table, ensuring every speaker is within 0.5-1 meter.
• Ceiling Mics: Effective for flexible seating or hygiene-sensitive spaces. Position mics according to manufacturer’s pattern charts to avoid dead spots.
• Boundary Mics: Can be discreetly installed along walls or ceilings for a clutter-free aesthetic.
• Wireless Mics: Useful for multi-purpose rooms, but require regular battery management and frequency coordination.

Speaker Zones and Acoustic Optimization

Audio output should be evenly distributed so everyone hears clearly without audio hotspots or dead zones.

• In-Ceiling Speakers: Best for even coverage in medium to large rooms.
• Wall-Mounted Speakers: Provide focused sound, suitable for smaller spaces.
• Acoustic Panels: Placing absorptive materials on parallel walls and ceilings reduces echo and improves speech clarity.
• Sound Masking: In open-plan spaces, sound masking systems can reduce distractions and maintain privacy.

Camera Selection and Placement

The right camera and its placement drive engagement and professionalism.

• PTZ Cameras (Pan-Tilt-Zoom): Offer flexibility to capture individuals or groups, ideal for larger rooms.
• Fixed Cameras: Work well for huddle rooms and small spaces where the field of view is predictable.
• Placement: Mount cameras at eye level with participants for natural eye contact. Avoid placing cameras facing direct light sources to reduce glare.
• Multiple Angles: In large or U-shaped rooms, use multiple cameras to cover all participants.

Display Considerations

Choosing the right display size and type impacts visibility and meeting inclusivity.

• Screen Size: Follow the “4-6-8 Rule” – the farthest viewer should be no more than 8 times the screen height away for basic viewing, 6 times for detailed viewing, and 4 times for inspection-level detail.
• Placement: Center the display at a comfortable height for seated viewers, and avoid placing screens where sunlight or reflections could interfere with visibility.
• Multiple Displays: In large rooms, consider secondary displays for content sharing or remote participants.

Codec Compatibility

The codec is the heart of video conferencing, handling audio and video compression and transmission.

• Hardware Codecs: Dedicated appliances like Cisco or Poly deliver reliable, consistent performance, often with better support for peripherals.
• Software Codecs: Solutions like Zoom, Teams, and Webex run on general-purpose computers. They offer flexibility and easier integration with third-party platforms.
• Consider Compatibility: Ensure all AV components are supported by your chosen codec (USB, HDMI, proprietary connectors, etc.) to avoid integration headaches.

Cabling and Network Infrastructure

Cabling is often overlooked, yet it forms the backbone of reliable AV systems.

• Structured Cabling: Use Cat6 or higher for network-based systems to accommodate current and future bandwidth needs.
• Cable Management: Conceal cables in floor ducts or wall conduits to minimize trip hazards and maintain aesthetics.
• Power Requirements: Plan for Power over Ethernet (PoE) where possible to reduce the number of required power outlets.
• Redundancy: For critical spaces, deploy redundant network paths and power to reduce the risk of outages.

Solving Common Problems and Frequently Asked Questions

How do I reduce audio echo and feedback?

Install proper acoustic treatments and use DSP (Digital Signal Processing) algorithms for echo cancellation. Avoid placing microphones and speakers too close together.

What if I need to upgrade my system in the future?

Choose modular components and favor AV over IP if long-term scalability is a priority. Document cable runs and device types for easy replacement or expansion.

How do I ensure my system is compatible with various conferencing platforms?

Leverage software codecs or certified hardware with interoperability features. Test all devices before final deployment.

Which solution is better for a multi-room setup?

AV over IP is generally better for multi-room or campus-wide installations due to its scalability and flexibility.

How do I manage network bandwidth for AV over IP?

Segment AV traffic onto a separate VLAN. Invest in managed switches that support QoS (Quality of Service) to prioritize AV data.

Are wireless solutions reliable?

For microphones, wireless is practical, but always plan for frequency coordination and potential interference. For video and network, wired is recommended for stability.

Conclusion

Designing a meeting room for video conferencing involves more than just picking a camera and display. The choice between AV over IP and matrix switching shapes your system’s flexibility and cost. Proper selection and placement of microphones, speakers, cameras, and displays ensure clear communication, while robust cabling and network planning guarantee reliability. By considering these factors and addressing the common questions above, you can build a video conferencing room ready for today’s demands and tomorrow’s innovations. And if you need further advice you can always contant ATODE.
